Stretcher Trolley's

Description:

1. Foot operated Hydraulic System mechanism by stepping on the pedal located on both sides of stretcher for Hi – Low, Trendelenburg & Reverse Trendelenburg adjustments.
2. Smooth Pneumatic mechanism to raise Backrest.
3. Kneerest position Obtained by Smooth Crank System with S.S. Foldable Handle at foot end.
4. Four section X-Ray permeable Platform Top along with Suitable Mattress of 100 mm (4”).
5. Two Pieces Individual Detachable Collapsible Safety Side-Rails with safety lock, Stainless Steel Pipe
6. Provided with Push/Driving Handle on the head end for smoothing the way of movement conveniently and can be stored while not in use.
7. Tubular M.S. Framework mounted on 200 mm (8”) Central Locking Castors
8. Bottom Cover with Storage bin.
9. Corner buffer provided at 4 locations.
10. Urine bag holder provided at both sides.
11. S.S. Telescopic I.V. Rod with 4 Hook’s (USI-5002) & provision on all 4 sides

Dimensions (Approx.) :

1. Overall Size: 2040L x 810W x 600 – 920H mm
2. Stretcher Top Size: 1930L x 735W
3. Angle of Back Section: 90°
4. Angle of Leg Section: 25°
5.  Angle of Trendelenburg / Reverse Trendelenburg: 12°/ 10°

Optional Accessories:

1. Fifth Wheel
2. Oxygen Cylinder Holder
3. Foot end Shelf

Description:

1. Heavy duty non- staining precision ball bearing swivel casters of 8” for easy maneuverability.
2. Casters- Foot operated and centrally actuated lever at head/foot ends with multistage switching for total lock, direction look or free mobility
3. Gas spring assisted seamless adjustment of Trendelenburg and reverse Trendelenburg positions.
4. Backrest Operated manually on ratchet system.
5. Convenient height adjustments on high quality hydraulic pump with foot operated levers on both sides of the trolley.
6. Two section mattress platform made of X-Ray permeable pre-laminated board, supported on strong M.S. Tubular frame with removable stretcher.
7. Provided with Oxygen Cylinder Cage, Sliding X-ray Cassette holder, Collapsible safety side railings, SS telescopic I.V. Rod with 4 hooks, Utility Tray and Suitable Mattress of 50 mm (2”).
8. Finish: Pretreated and Epoxy powder coated.

Dimensions (Approx.):

• Overall Size: 2030L x 1020W x 600-880H mm.
• Stretcher top Size: 1930L x 660W mm
• Angle of Back Section: 80°
• Angle of Trendelenburg / Reverse Trendelenburg: 17° / 15°

Optional Accessories:

• Fifth Wheel
• Foot end Shelf

Description:

1. Tubular M.S. Framework, foot operated hydraulic pump for height adjustment
2. Smooth Pneumatic mechanism to obtain Trendelenburg and Reverse Trendelenburg positions.
3. Removable two section X-Ray permeable top with Head Raise on Ratchet Mechanism.
4. Trolley Mounted on 125 mm (5”) diagonal locking castors
5. Provided with Oxygen Cylinder Cage, Sliding X-ray Cassette holder, SS drop down safety side railings, SS telescopic I.V. Rod with 4 hooks, Utility Tray and Suitable Mattress of 50 mm (2”).
6. Finish: Pretreated and Epoxy powder coated.

Dimensions (Approx.):

1. Overall Size: 2100L x 670W x 690 – 950H mm.
2. Stretcher top Size: 1940L x 605W mm
3. Angle of Back Section: 70°
4. Angle of Trendelenburg / Reverse Trendelenburg: 9°/ 15°

Description:

1. Tubular M.S. Framework
2. Positions Obtained by Separate Smooth Crank System with S.S. Foldable Handle: Hi – Low & Trendelenburg / Reverse Trendelenburg.
3. Removable two section X-Ray permeable top with Head Raise on ratchet mechanism.
4. Trolley Mounted on 125 mm (5”) diagonal locking castors
5. Provided with Oxygen Cylinder Cage, SS drop down Safety Side Railings, SS telescopic I.V. Rod with 4 Hooks, Utility Tray and Suitable Mattress of 50 mm (2”).
6. Finish: Pretreated and Epoxy powder coated.

Dimensions (Approx.):

1. Overall Size: 2220L x 700W x 600 – 810H mm
2. Stretcher top Size: 1950L x 610W mm
3. Backrest Angle: 75°
4. Trendelenburg / Reverse Trendelenburg: 5°/ 9°

Description:

1. Smooth Pneumatic mechanism to raise Backrest.
2. Hi – Low position obtained by Smooth Crank System with S.S. Foldable Handle at foot end.
3. Framework made of mild steel mounted on 125mm (5”) Central Locking Castors
4. Two Section PP Platform Top.
5. PE engineering plastic moulded two Pieces individual Side Rails.
6. Bottom Trolley fully M.S. covered
7. Finish: Pretreated & Epoxy Powder Coated.
8. Overall Size: 1920L x 680W x 530 – 820H mm.

Description:

1. High quality Aluminum material as the main structure, one time automatically pressed
2. Stretcher can be lift up/down easily with crank, to let the two single stretcher come to the same level and slide the top easily.
3. It can be locked automatically when the Top slide to single stretcher.
4. Smooth Pneumatic mechanism to raise Backrest for top.
5. Hi – Low position obtained by Smooth Crank System with S.S. Foldable Handle at foot end.
6. Framework made of mild steel mounted on 125mm (5”) Central Locking Castors
7. Two Section PP Platform Top.
8. PE engineering plastic moulded two Pieces individual Side Rails.
9. Bottom Trolley fully M.S. covered
10. Finish: Pretreated & Epoxy Powder Coated.
11. Overall Size: 3650L x 640W x 640 – 970H mm.

Description:

1. Framework made of Tubular M.S. Pipe with S.S. handle.
2. 2 Section Platform Top with Fixed 50mm (2”) Mattress.
3. Trolley mount on 150 mm diagonal Locking castors.
4. Swing Away Type Safety Side Railing in M.S.
5. Provided with Adjustable S.S. I.V. Rod, Utility Tray, and Cylinder Cage.
6. Finish: Pretreated and Epoxy powder coated.
7. Stretcher Top Size (Handle to handle) : 2090L x 560W
8. Overall Size: 2090L x 590W x 840H mm.

Description:

1. Removable Stretcher top on CRCA, ERW tubular Steel trolley mounted on 150mm (6”) Diagonal Locking Castors.
2. Framework made of 1.25” x 16G vertical and 1” x 18G horizontal CRC tubes.
3. Suitable Mattress of 50 mm (2”), with Safety Belts.
4. Finish: Pretreated and Epoxy powder coated.
5. Stretcher Top Size (Handle to handle) : 2050L x 565W mm.
6. Trolley Size: 1113L x 580W x 800H mm.

Optional Accessories:

1. S.S. Telescopic I.V. Rod with 4 Hook’s (USI-5002)
2. Safety Side-Rails, Swing Away

Description:

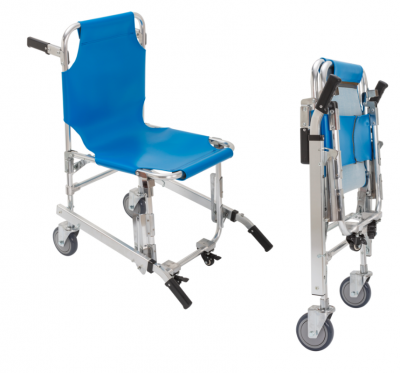

Stair Chair  made of aluminum alloy material, with light weight, easy folding, easy to operate etc. The motor is brush less motor, and it is divided into three gears of high and low grade. The battery is light weight and easy to disassemble lithium battery. Provided with four wheels (125mm & 75mm)

Dimensions:

1. Product Size:

      Unfolded : 1650L x 485W x 1200H mm.

      Folded : 1090L x 485W x 250H mm.

     2. Packing Size (1pc): 1160L x 580W x 320H mm.

      N.W.：33kg

      G.W.：44kg

      Load Bearing: Less than 159kg.

Description:

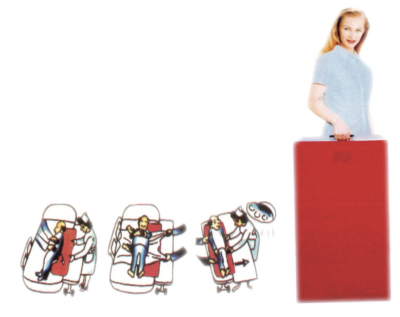

The patient can slide easily in spite of the different height and weight. The nurses will feel more comfortable when moving the patient, and it is very helpful to the nurses. While moving the patient, particularly the serious patient on the patient beds. Can be shifted from Trolleys, inspection beds, X-ray fluoroscopy tables and operation tables. Materials: Nylon, Plywood, Water resistant maximum load for 15 cms gap will be 200 kgs.

Description:

1. Framework made of Tubular S.S. Pipe with S.S. handle.
2. 2 Section Platform Top with Fixed 50mm (2”) Mattress.
3. Trolley mount on 150 mm diagonal Locking castors.
4. Swing Away Type Safety Side Railing in S.S.
5. Provided with Adjustable S.S. I.V. Rod, Utility Tray, and Cylinder Cage.
6. Finish: Stainless Steel
7. Stretcher Top Size (Handle to handle) : 2090L x 560W
8. Overall Size: 2090L x 590W x 840H mm.
